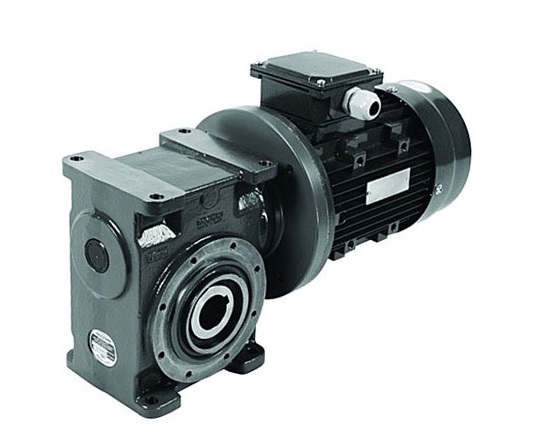

Radicon Series AJ Junior Worm Gear Units
Radicon's Series AJ Junior worm gear units are available in 6 sizes, offering a capacity of 12 kW/950 Nm with center distances from 28mm to 86mm. These units feature hollow output bores, with the option to fit plug-in solid output shafts, allowing for easy handling changes without disassembly. Double extended output shafts and a range of output flanges are also available. With 10 ratio options from 5:1 to 70:1, the Series AJ Junior delivers high efficiency, strong load-carrying capacity, and reliable long-term performance. All units are lubricated for life, minimizing maintenance needs.
Series AJ Options
|
Unit Sizes |
280, 410, 510, 630, 720, 860 |
|
Input Power |
Up to 16 HP (12 kW) |
|
Output Torque |
Up to 7600 lb.in (950 Nm) |
|
Gear Ratios |
Up to 70/1 in single stage, 4900:1 in double reduction |
|
Motor Sizes |
IEC Frames from 63 to 132; NEMA Frames from 56 to 215 |
Radicon Series AJ Junior Worm Gear Units Catalog
